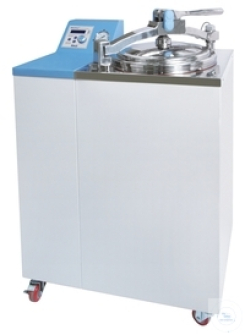

Autoklāvi WAC /WAC-R 47L/ 60L/ 80 L
47L / 60L / 80L
Ideal for Biotechnology, Clinical, Environmental, Medical and Food Industry
Specification:
47L / 60L / 80L
up tp 132°C
Electronic Door Lock Sensing System for User Safety
Steam Condensing Mechanism
Solid-/Liquid-Modes
Only for WAC-R models-built-in Recorder model (only WAC-R models): Print Sterilization Cycle Data for Validation and Analyze Sterilization (Temperature , Pressure, Time, Error Status, etc.)
Temperature range & accuracy room temperature + 5°C to 132 C, ±5°C at 121°C
Pressure & gauge 1.2 kgf/ cm2 at 121°C / 2.0 kgf/ cm2 at 132°C, 0 - 3 kgf/ cm2
| Model |
WAC-47/ WAC-R47 |
WAC-60/ WAC-R60 |
WAC-80/ WAC-R80 |
| Capacity | 47 l | 60 l | 80 l |
| Heating power | 2 kw | 3 kw | 3x1,5 kw |
| Basket dimensions | d 270x240 mm | d 320x240 mm | d 370x240 mm |
| Internal dimensions | d 300x670 mm | d 350x650 mm | d 400x650 mm |
| Outer dimensions(WxDxH) | 680x470x880 mm | 680x470x900 mm | 780x580x900 mm |
| Power supply |
1 phase AC 120V, 60 Hz or AC 230V,50/60 Hz |
1 phase AC120V,60Hz or AC230V, 50/60 Hz |
3 phase AC400V, 50/60 Hz |
|
Order number WAC/ WAC-R |
|||
|
230 V |
DH.WAC05047/ DH.WACR2047 |
DH.WAC05060/ DH.WACR2060 |
|
| 120V |
DH.WAC06047/ DH.WACR1047 |
DH.WAC06060/ DH.WACR1060 |
|
| 3 phase |
DH.WAC07080 /DH.WACR3080 |
